AQUAFINE
VL SERIES
Aquafine’s VL Series provide a compact design and economical UV water treatment for low-flow applications such as laboratory and medical facility water, pharmaceutical make-up processes, final electronic component rinsing and recirculation loops.
The Aquafine VL Series is a superior product design over the previous model offering with all of the same core features, with a smaller footprint and more versatile design. The VL base models come standard with many additional options over the prior system offered. The Aquafine VL Series is mostly applied for TOC reduction and ozone destruction. It is widely used in the market of food & beverage and life sciences.
FEATURES & SPECIFICATIONS
| Model | |||
| VL 200 | VL 410 | ||
| General | Disinfection 94% UVT GPM (m3/hr) | 11 (2.5) | 18 (4.1) |
| Disinfection 99% UVT GPM (m3/hr) | 12 (2.7) | 20 (4.5) | |
| Amount of Lamps (LPHO) | 1 | 1 | |
| Lamp Operating Power (watt) | 25 | 46 | |
| Total Operating Power (watt) | 35 | 60 | |
| UV Chamber | Chamber Material | Type 316L Stainless Steel | Type 316L Stainless Steel |
| Dimension | 15 ‘ x 3.5 ‘ (45 cm x 8.9 cm) | 23.5 ‘ x 3.5 ‘ (60 cm x 8.9 cm) | |
| Interior Surface Finish | R32 | R32 | |
| Inlet / Outlet Flange Size | 1 ‘ (25 mm) | 1.5 ‘ (37 mm) | |
| Inlet / Outlet Configuration | S – Shape | S – Shape | |
| IP Rating | 33 | 33 | |
| Controller | Lamp Replacement Countdown in Days | – | Yes |
| Audible Lamp Replacement / Fault Alarm | Yes | ||
| Audible Low UVI Alarm | Yes (Sensor Only) | ||
| AUX Output (Lamp Out Alert) | Yes | ||
| Dimension – Monitored (H x W x D) | 8.8 ‘ x 3.2 ‘ x 2.5 ‘ (22.3 cm x 8.1 cm x 6.4 cm) | ||
| Dimension – Non-Monitored (H x W x D) | 6.8 ‘ x 3.2 ‘ x 2.5 ‘ (17.2 cm x 8.1 cm x 6.4 cm) | ||
| IP Rating | 54 | ||
OPTIVENN SERIES

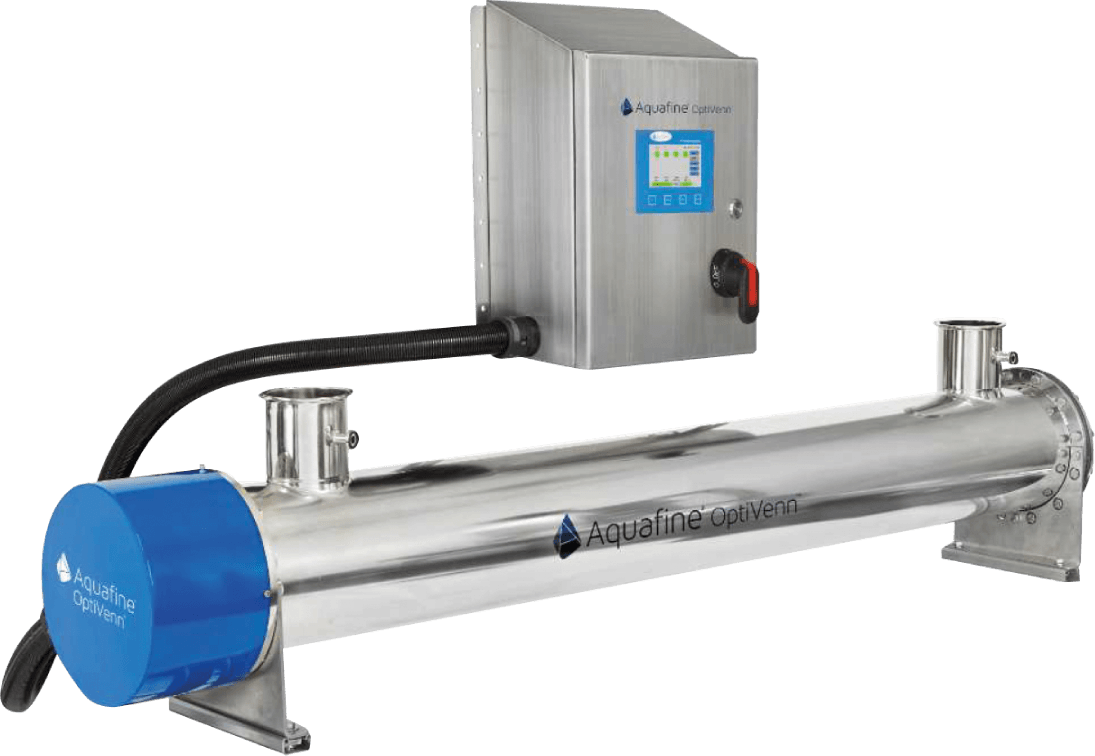

The OptiVenn Series is a family of robust and flexible UV systems with advanced technology designed to meet the stringent requirements of pharmaceutical, food & beverage, microelectronics and other industrial markets.
The series consists of a 316L stainless steel treatment chamber and 304 stainless steel control panel, and is equipped with a universal controller which provides control, monitoring and operational information in a single convenient location.
The treatment chamber and control panel are extremely compact and offer flexibility of installation to accommodate into different skid designs or as a stand-alone UV system.
FEATURES & SPECIFICATIONS
|
Maximum Flow Rate |
Electrical Requirement |
Chamber |
Monitoring & Control |
||||||||
|
Model |
Flow Rate (GPM) |
Flow Rate (m3 / hr) |
Amount of UV Lamps |
Electrical Supply |
Operating Power (watt) |
Material Construction |
Lamp Length |
Chamber Diameter |
ANSI Flanges Size & Optional Tri-Clamp Size |
Standard |
Optional |
|
01CDS |
12 – 2,200 |
2.7 – 500 |
1 |
110 – 240 V ; 50/60 Hz ; L-L or L-N ; 2W + GND |
63 |
36L Stainless Steel |
15 ‘ (38 cm) |
6 ‘ (15 cm) |
2 ‘ (5 cm) |
Base Package: Lamp Status Indicator, System Hours of Operation, Lamp Out Alert (LOA) & Remote Start/Stop (HOA) |
UV Monitoring Package: UV Intensity Reading with NIST Certified Sensor |
|
03CDS |
3 |
165 |
|||||||||
|
02CDM |
2 |
155 |
30 ‘ (76 cm) |
||||||||
|
02DDM |
2 |
155 |
8 ‘ (20 cm) |
3 ‘ (8 cm) |
|||||||
|
04CDM |
4 |
297 |
6 ‘ (15 cm) |
||||||||
|
04DDM |
4 |
297 |
8 ‘ (20 cm) |
4 ‘ (10 cm) |
|||||||
|
04CDL |
4 |
583 |
60 ‘ (152 cm) |
6 ‘ (15 cm) |
|||||||
|
04DDL |
4 |
583 |
8 ‘ (20 cm) |
6 ‘ (15 cm) |
|||||||
|
06DDL |
6 |
1,153 |
|||||||||
|
08DDL |
8 |
1,438 |
|||||||||
|
08EDL |
8 |
1,438 |
10 ‘ (25 cm) |
8 ‘ (20 cm) |
|||||||
|
08FDL |
8 |
1,438 |
12 ‘ (30 cm) |
||||||||
|
08GDL |
8 |
1,438 |
14 ‘ (36 cm) |
||||||||
|
10GDL |
10 |
1,723 |
|||||||||
|
12GDL |
12 |
2,008 |
|||||||||
|
12HDL |
12 |
2,008 |
16 ‘ (41 cm) |
10 ‘ (25 cm) |
|||||||
