VIQUA

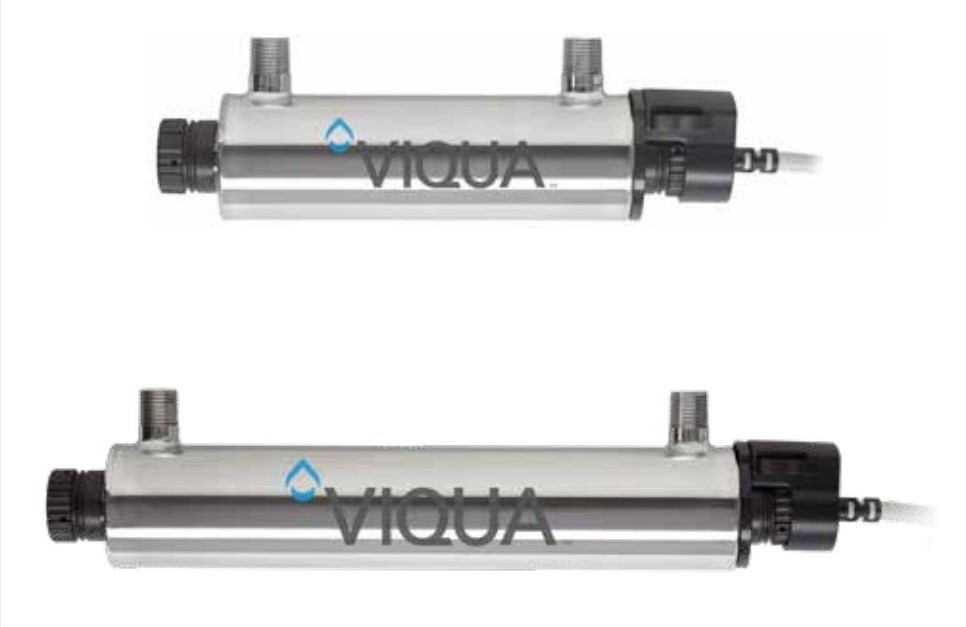

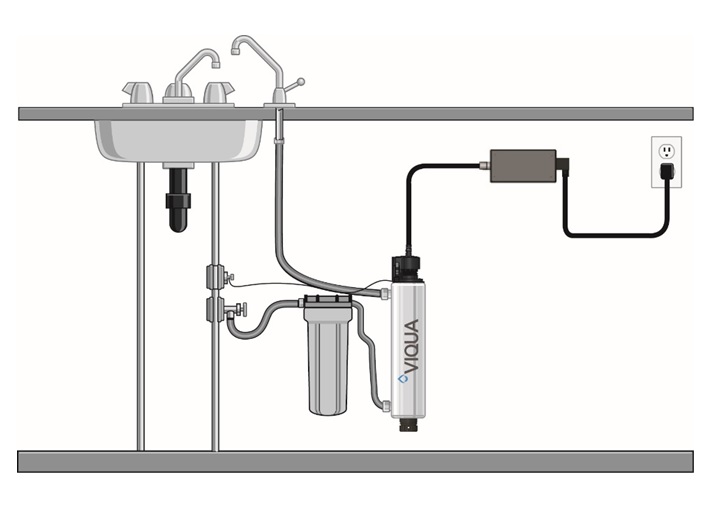

SINGLE TAP
The TAP family of compact UV water systems provide a reliable and economical way to treat drinking water in virtually any residential application. VIQUA’s products have been designed and tested to ensure quality drinking water is at everyone’s finger tips.
Regardless of your need, there is a VIQUA system to suit your requirements. VIQUA offers systems that range in flow rates from just 1 GPM (0.25 m3/hr) for a single faucet up to 3.5 GPM (0.8 m3/hr) for a small home or cottage.
FEATURES & SPECIFICATIONS
|
Model |
Dimension |
Shipping Weight |
Connection Size |
Power Consumption |
UV Dosage |
Flow Rate |
|
VT1 |
12.5 ‘ x 2.5 ‘ (31.8 cm x 6.5cm) |
4 lbs (1.8 kg) |
0.375 ‘ – 0.5 ‘ COMBO NPT |
13 watt |
16 mJ / cm2 |
2 GPM (7 lpm) (0.4 m3 / hr) |
|
30 mJ / cm2 |
1 GPM (4 lpm) (0.25 m3 / hr) |
|||||
|
40 mJ / cm2 |
0.7 GPM (3 lpm) (0.2 m3 / hr) |
|||||
|
VT4 |
17 ‘ x 2.5 ‘ (43.6 cm x 6.5cm) |
6.5 lbs (2.8 kg) |
0.5 ‘ MNPT |
20 watt |
16 mJ / cm2 |
6.5 GPM (24 lpm) (1.4 m3 / hr) |
|
30 mJ / cm2 |
3.5 GPM (13 lpm) (0.8 m3 / hr) |
|||||
|
40 mJ / cm2 |
2.5 GPM (9 lpm) (0.6 m3 / hr) |

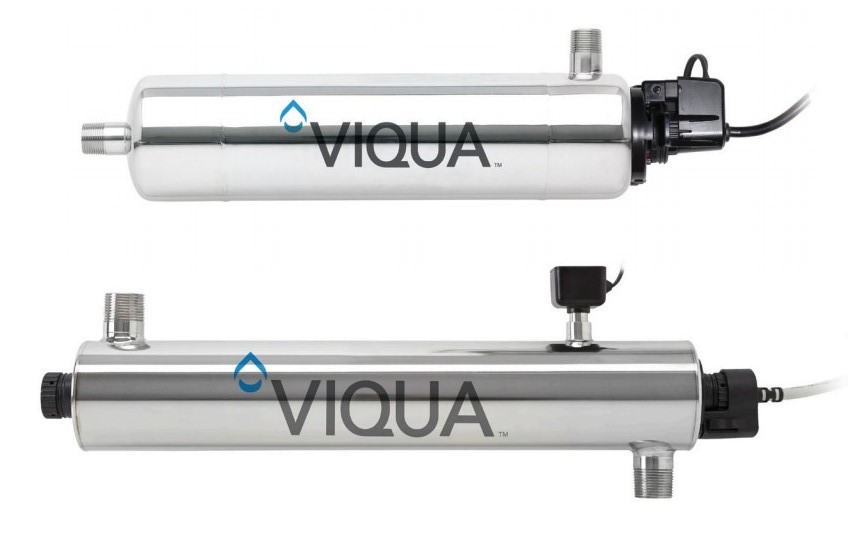

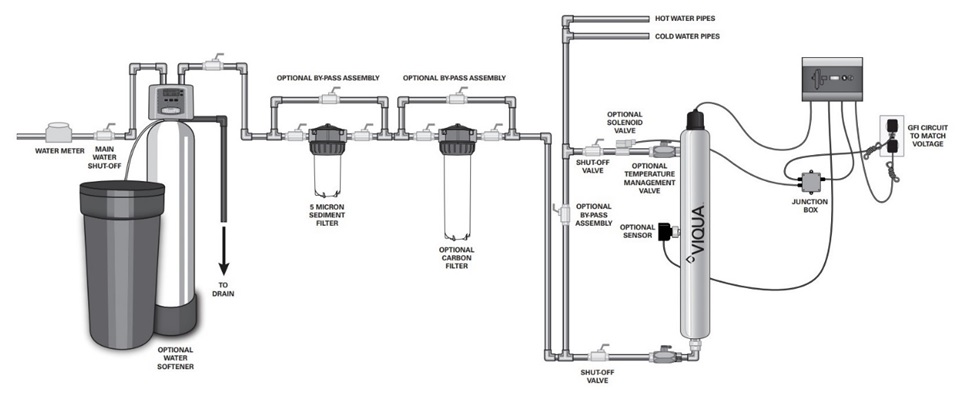

HOME STANDARD
The VIQUA HOME family of compact UV water systems provide a reliable and economical way to treat drinking water in virtually any residential application. VIQUA’s range of products have been designed and tested to ensure quality drinking water is at everyone’s finger tips.
Regardless of your need, there is a VIQUA system to suit your requirements. VIQUA offers systems that range in flow rates from just 6 GPM for a small home or cottage, up to 18 GPM for a larger home or small business.
FEATURES & SPECIFICATIONS
| Model | Dimension | Shipping Weight | Connection Size | Power Consumption | UV Dosage | Flow Rate |
| S5Q-PA | 22 ‘ x 2.5 ‘ (56.1 cm x 6.4cm) | 8 lbs (3.6 kg) | 0.75 MNPT (/2B – BSP) | 30 watt | 16 mJ / cm2 | 11 GPM (42 lpm) (2.5 m3 / hr) |
| 30 mJ / cm2 | 6 GPM (23 lpm) (1.4 m3 / hr) | |||||
| 40 mJ / cm2 | 4.5 GPM (17 lpm) (1.0 m3 / hr) | |||||
| S8Q-PA | 35.5 ‘ x 2.5 ‘ (90.4 cm x 6.4cm) | 11 lbs (5 kg) | 0.75 ‘ MNPT (/2B – BSP) | 46 watt | 16 mJ / cm2 | 19 GPM (72 lpm) (4.3 m3 / hr) |
| 30 mJ / cm2 | 10 GPM (38 lpm) (2.3 m3 / hr) | |||||
| 40 mJ / cm2 | 8 GPM (29 lpm) (1.8 m3 / hr) | |||||
| D4 & D4 Premium | 20.5 ‘ x 4 ‘ (52 cm x 10 cm) | 10 lbs (4.5 kg) | 0.75 MNPT | 50 watt | 16 mJ / cm2 | 23 GPM (87 lpm) (5.2 m3 / hr) |
| 30 mJ / cm2 | 12 GPM (45 lpm) (2.7 m3 / hr) | |||||
| 40 mJ / cm2 | 9 GPM (34 lpm) (2 m3 / hr) | |||||
| VH-200 | 15 ‘ x 3.5 ‘ (45 cm x 8.9cm) | 12 lbs (5.4 kg) | 0.75 ‘ – 1 ‘ MNPT COMBO (/2B – BSP) | 35 watt | 16 mJ / cm2 | 16 GPM (60 lpm) (3.6 m3 / hr) |
| 30 mJ / cm2 | 9 GPM (34 lpm) (2.0 m3 / hr) | |||||
| 40 mJ / cm2 | 7 GPM (26 lpm) (1.6 m3 / hr) |

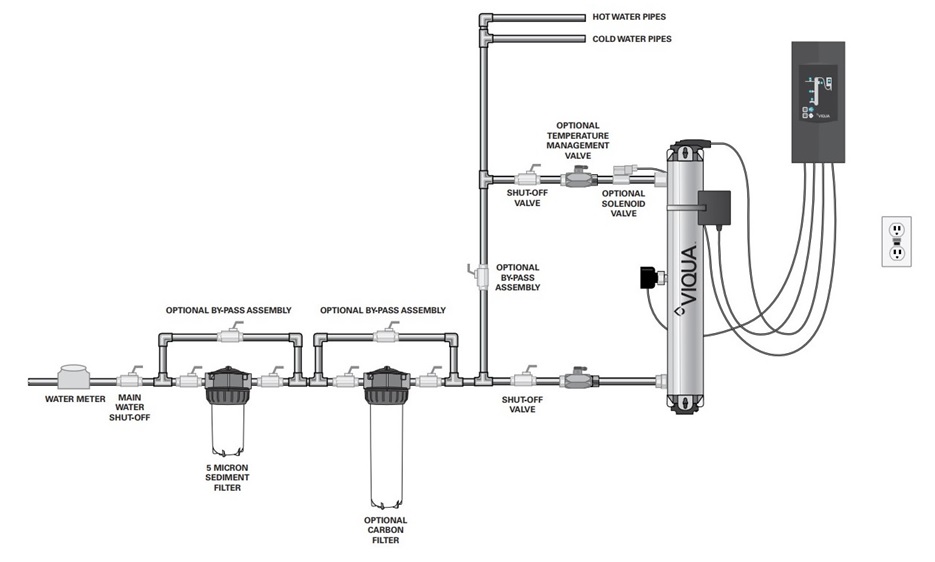

PROFESSIONAL
The PROFESSIONAL family of compact UV disinfection systems provide a reliable and economical way to treat drinking water in virtually any light commercial application. VIQUA’s products have been designed and tested to ensure quality drinking water is at everyone’s finger tips.
Regardless of your need, there is a VIQUA system to suit your requirements. VIQUA’s High-Flow series offers systems with flow rates of up to 290 GPM (65 m3/hr) for facilities with higher water demands.
FEATURES & SPECIFICATIONS
| Model | Dimension | Shipping Weight | Connection Size | Power Consumption | UV Dosage | Flow Rate |
| E4 | 30 ‘ x 4 ‘ (76 cm x 10 cm) | 13 lbs (5.9 kg) | 1 ‘ NPT | 83 watt | 16 mJ / cm2 | 42 GPM (160 lpm) (9.6 m3 / hr) |
| 30 mJ / cm2 | 22 GPM (83 lpm) (5 m3 / hr) | |||||
| 40 mJ / cm2 | 16 GPM (60 lpm) (3.6 m3 / hr) | |||||
| F4 | 44.25 ‘ x 4 ‘ (112.5 cm x 10 cm) | 18 lbs (8.2 kg) | 1 ‘FNPT | 130 watt | 16 mJ / cm2 | 45 GPM (170 lpm) (10 m3 / hr) |
| 30 mJ / cm2 | 36 GPM (136 lpm) (8 m3 / hr) | |||||
| 40 mJ / cm2 | 27 GPM (102 lpm) (6 m3 / hr) | |||||
| VP600 | 30.67 ‘ x 3.5 ‘ (78 cm x 8.9 cm) | 19 lbs (8.6 kg) | 1’ MNPT (/2B – BSP) | 70 watt | 16 mJ / cm2 | 40 GPM (150 lpm) (9 m3 / hr) |
| 30 mJ / cm2 | 24 GPM (91 lpm) (5.5 m3 / hr) | |||||
| 40 mJ / cm2 | 18 GPM (66 lpm) (4.1 m3 / hr) | |||||
| VP950 | 45 ‘ x 3.5 ‘ (114 cm x 8.9 cm) | 29 lbs (13.1 kg) | 1.5 ‘ MNPT (/2B – BSP) | 95 watt | 16 mJ / cm2 | 60 GPM (230 lpm) (13.7 m3 / hr) |
| 30 mJ / cm2 | 34 GPM (130 lpm) (7.8 m3 / hr) | |||||
| 40 mJ / cm2 | 26 GPM (97 lpm) (5.8 m3 / hr) | |||||
| H | 31 ‘ x 4 ‘ (78 cm x 10 cm) | 28 lbs (12.7 kg) | 1.25 ‘ MNPT x 1 ‘ FNPT COMBO | 160 watt | 16 mJ / cm2 | 48 GPM (180 lpm) (11 m3 / hr) |
| 30 mJ / cm2 | 45 GPM (170 lpm) (10 m3 / hr) | |||||
| 40 mJ / cm2 | 37 GPM (140 lpm) (8.4 m3 / hr) | |||||
| K | 41 ‘ x 4 ‘ (103 cm x 10 cm) | 31 lbs (14 kg) | 2 ‘MNPT | 230 watt | 16 mJ / cm2 | 120 GPM (454 lpm) (27 m3 / hr) |
| 30 mJ / cm2 | 80 GPM (303 lpm) (18 m3 / hr) | |||||
| 40 mJ / cm2 | 60 GPM (226 lpm) (13.6 m3 / hr) | |||||
| SHF140 | 34 ‘ x 6 ‘ x 14 ‘ (86.4 cm x 15.2 cm x 35.6 cm) | 68 lbs (30.8 kg) | 3 ‘ FLANGE | 350 watt | 16 mJ / cm2 | 310 GPM (1,170 lpm) (70 m3 / hr) |
| 30 mJ / cm2 | 170 GPM (640 lpm) (38 m3 / hr) | |||||
| 40 mJ / cm2 | 125 GPM (470 lpm) (28 m3 / hr) | |||||
| SHF180 | 42.5 ‘ x 6 ‘ x 14 ‘ (107.3 cm x 15.2 cm x 35.6 cm) | 78 lbs (35.4 kg) | 3 ‘ FLANGE | 400 watt | 16 mJ / cm2 | 350 GPM (1,300 lpm) (78 m3 / hr) |
| 30 mJ / cm2 | 210 GPM (790 lpm) (47 m3 / hr) | |||||
| 40 mJ / cm2 | 160 GPM (600 lpm) (36 m3 / hr) | |||||
| SHF290 | 42.5 ‘ x 8 ‘ x 17 ‘ (108 cm x 20.3 cm x 43.5 cm) | 286.5 lbs (129.7 kg) | 4 ‘ FLANGE | 550 watt | 16 mJ / cm2 | 543 GPM (2,055 lpm) (123 m3 / hr) |
| 30 mJ / cm2 | 290 GPM (1,098 lpm) (65 m3 / hr) | |||||
| 40 mJ / cm2 | 215 GPM (813 lpm) (48 m3 / hr) |
